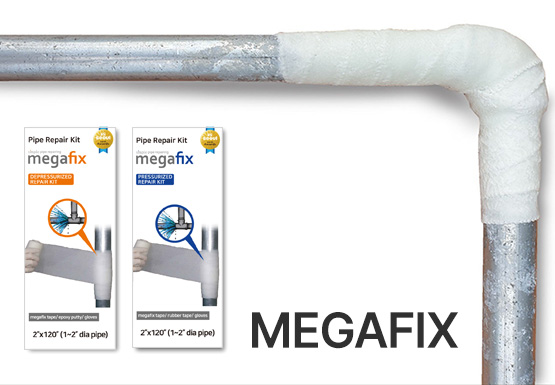

MEGA FIX

MEGAFIX is a repair tape that hardens upon contact with water, and it is used for industrial and household pipe leakage repairs and maintenance.

Once cured, the product combines the strength of steel with the lightweight nature of plastic and offers excellent chemical resistance to substances such as alcohol, seawater, and toluene.

It features easy application without the need for special tools, while providing superior adhesion and durability. MEGAFIX is suitable for use on a variety of pipe materials, including steel, FRP, RTR, PVC, and more.

  • Suitable for use in water
  • Applicable under water-pressure
  • Fast application
  • Within 15 minutes even for non-professionals
  • Excellent pressure resistance
  • Max. 70bar
  • Elbow & Joint
  • Suitable for curved area
  • Minimize plant shutdown time
  • Cost effective

KIT COMPONENTS

SPECIFICATION

5cm X 3M
10cm X 3M
10cm X 5M
10cm X 10M
15cm X 10M

INSTRUCTION FOR USE

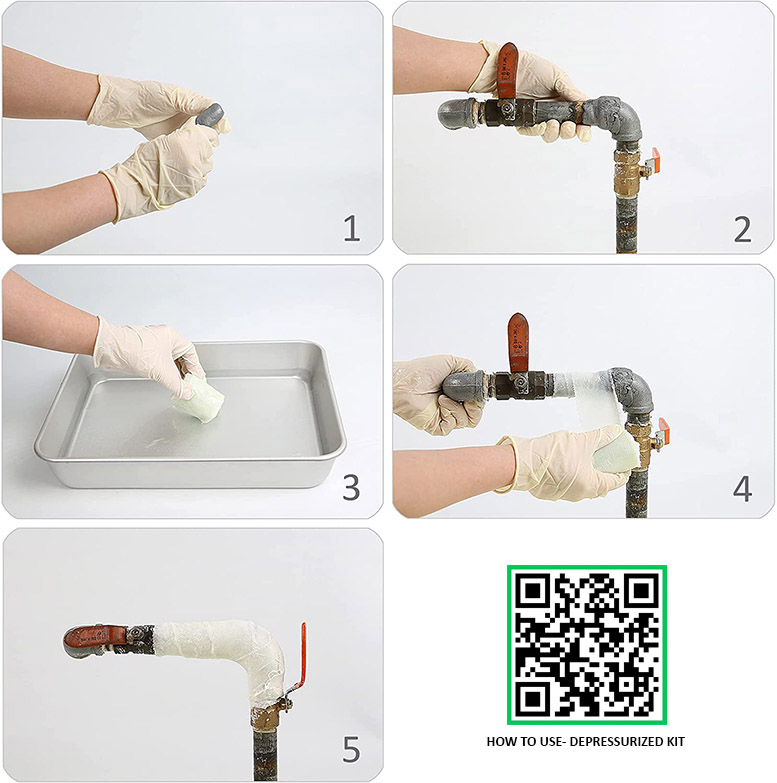

INSTRUCTION FOR USE (EPOXY TYPE)

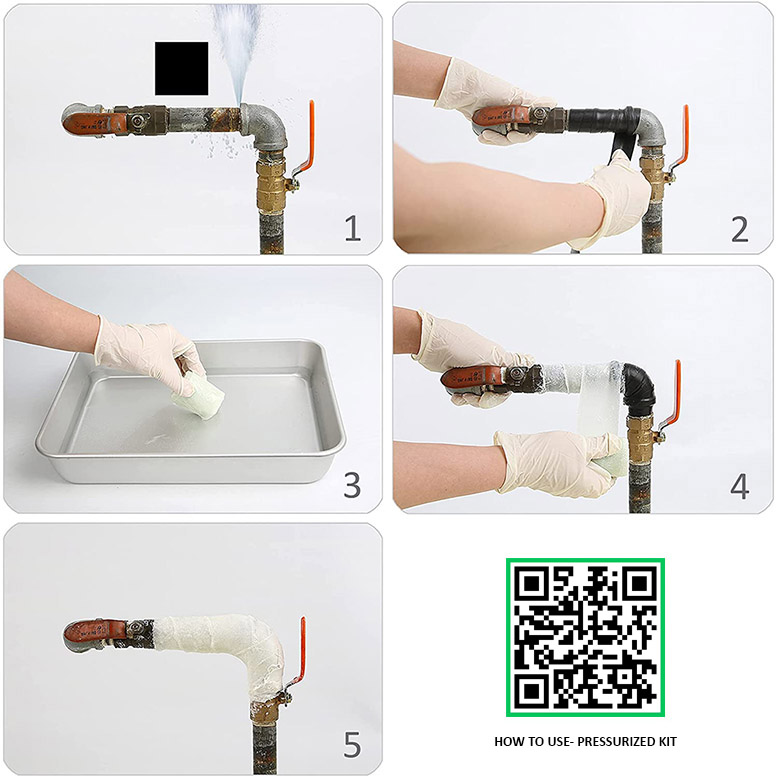

INSTRUCTION FOR USE (RUBBER TYPE)

APPLICATION EXAMPLE

TEST & CERTIFICATE

SPECIFICATION

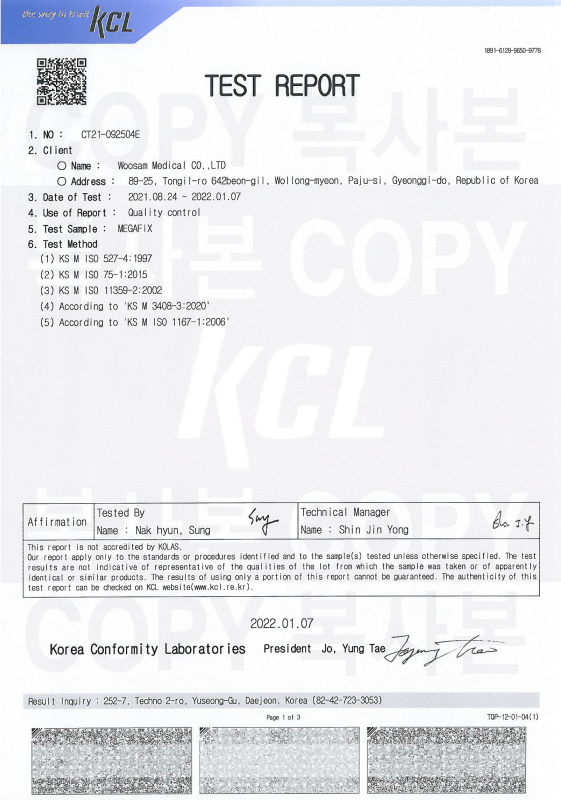

KCL Test Report January 7, 2022

ITEM RESULT METHOD
Tensile Strength (N/Full width) 2,616 ASTM / D 638-2003
Elogation (%) 3.1 ASTM / D 638-2003
Compressive Strength (kgf) 52.5 ASTM / D 695-2002
Brust Test (20ºC, 5bar/min) 69.77 KS / M 3408-3:2020
Coefficient of Linear Thermal Expansion (at 100ºC) 299 X 10ª-6 KS / M / ISO 11359-2:2002

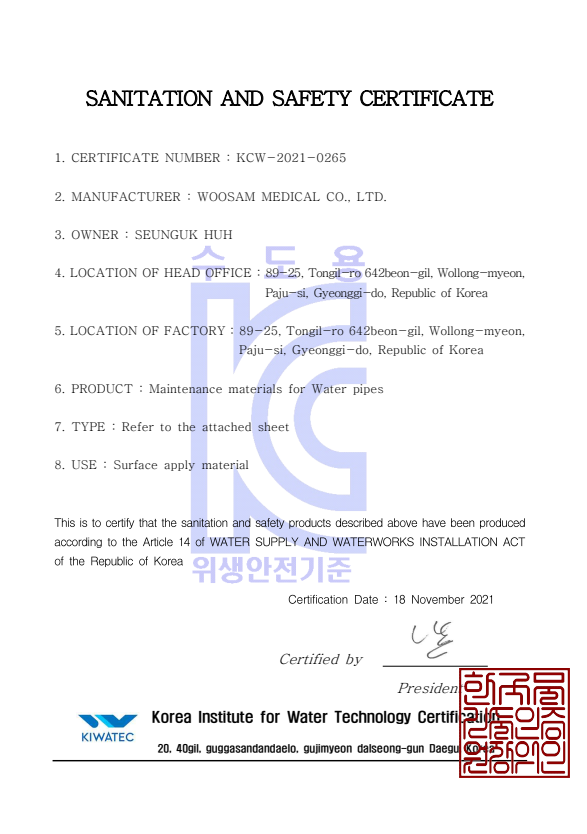

SANITARY SAFETY REPORT

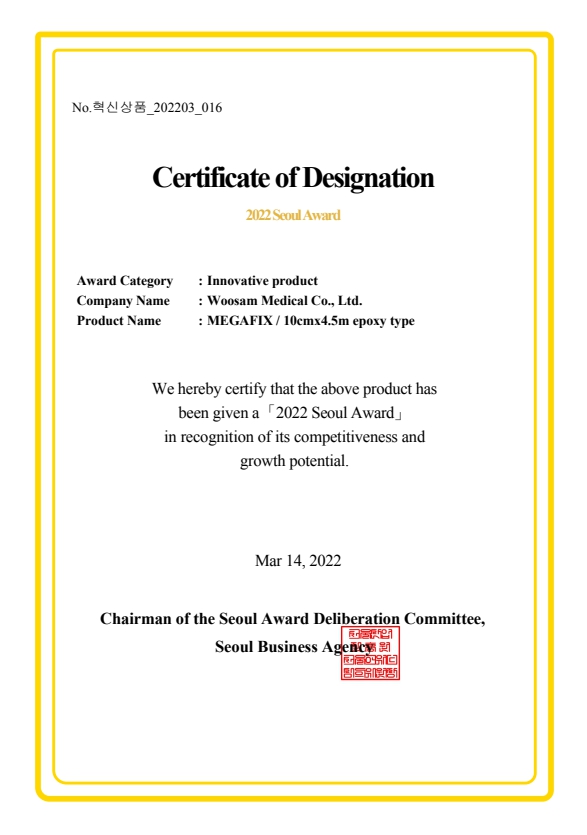

SEOUL AWARD 2022

TEST RESULT
